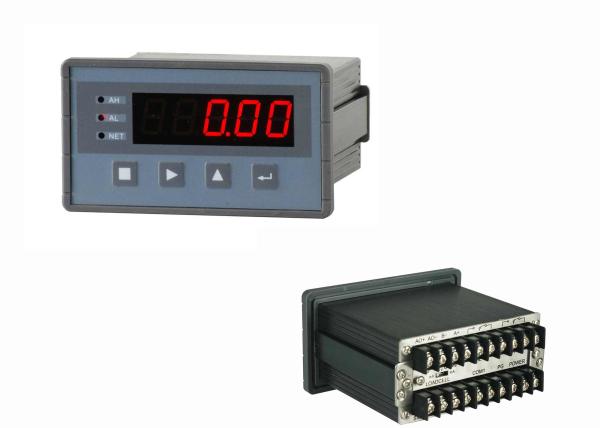

High Anti Vibration Weighing Indicator, Weight Controller For Crane Weighing System

Name: High Anti Vibration Weighing Indicator Weight Controller For Crane Weighing System
Brand: SUPMETER
Price: 150 USD

Cheap High Anti Vibration Weighing Indicator, Weight Controller For Crane Weighing System for sale

Brand Name : SUPMETER

Model Number : BST106-B60S[C]

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : 150USD PER UNIT

Payment Terms : T/T

Supply Ability : 1000 UNIT PER MONTH

Delivery Time : 5 WORKING DAYS

Packaging Details : CARTON PACKING

Material : steel

Display : LED

Communication : RS232

Application : SETPOINTS

Special function : High Anti-Vibration Digital Filtering

AO : Definable

Contact Now

High Anti Vibration Weighing Indicator, Weight Controller For Crane Weighing System

Technical Specification

[1] Power Supply: DC24V±20%, Max. 5W.

[2] Loadcell Excitation Voltage/Current: DC5V/120mA.
 8 Loadcells[350Ω] connectable.
 [3]Transmitter Excitation Voltage/Current: DC12V/100mA.
[4] Optional weighing input signal mV, V and mA.
 【mV】Signal Input Range: 0~19.5mV.
 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
 【mA】Signal Input Range: 0~20mA.
[5] 2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
 [6]1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
[7] COM1: RS232.
 COM2: RS485.
[8] Connect Host IPC[Modbus] & Remote Display.
[9] Outline Size [W×H×D]: 107 × 60 × 100 mm.
[10] Panel Cut-out Size [W×H]: 94 × 47 mm.
[11] Operating Temperature: -25℃～+45℃.
[12] Protection Level of Front Panel: IP65.
[13] Accuracy Grade: III.
[14] Verification Accuracy: 0.03%.
[15] Static Weighing / Force Measuring Accuracy: 0.2%~0.5%.

High Anti Vibration Weighing Indicator, Weight Controller For Crane Weighing System

Main Specification:

Power Supply: DC24V±20%.

Display: LED with key tone.

Max. Connection Quantity: 4 Loadcells (350Ω).

Excitation Voltage Output: DC9V.

6DI, 8DO

Communication: RS232/RS485

Outline Dimension: 110 × 62 × 150 mm (W×H×D).

High Anti Vibration Weighing Indicator, Weight Controller For Crane Weighing System

Weight : Approx. 0.5kg.

IP Grade:IP50

High Anti Vibration Weighing Indicator, Weight Controller For Crane Weighing System
