Dynamic Checkweigher Controller For Production Line System

Name: Dynamic Checkweigher Controller For Production Line System
Brand: SUPMETER
Price: 1 USD

Cheap Dynamic Checkweigher Controller For Production Line System for sale

Brand Name : SUPMETER

Model Number : BST106-M10[CK]

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negociation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 5-10 working days

Packaging Details : carton box

Size Option : 7 inch and 10 inch

Loadcell Max. Connection Quantity : 16 Loadcells (350Ω)

Communication : RS232 and RS485

I/O interface : 7 DI and 18 DO

AO : 4*AO (0~10V)

Additional Option : ethernet communication

Contact Now

BST106-M10[CK] Weighing Controller

For: Auto Checkweigher Sorting Control

1.Optional Application Mode: Rejecting Mode [Low/Normal/High] and Weight Sorting Mode with 3-18 Sorting Areas

2. Optional Control Modes for Feeding /Checking/Sorting Conveyors: DO Switch Control Mode, PWM Speed Regulation Mode and AO[0-10V] Speed Regulation Mode.

Main Funtion:

Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
Static Calibration and Dynamic Compensation functions available.
Definable DI funtion of ‘Weight-checking Photo-electric Identification’ for identifying the unchecked product entering the weigher.
Optional Weight-checking Mode: Dynamic Mode and Static Mode.
Optional 3-18 Sorting Areas with Batch Counting, Weight Totalizing and DO outputs.
100 Recipes for weight-checking&sorting control.
The Batch Records can be printed automatically.
The Totalizing Reports and Recipes can be queried and printed.
With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Button Operation

Name	Operation	State Indicator	Authorization
【Start】	Start. ‘Stop’ state: Start the conveyors and enter the weight-checking running state. ‘Pause’ state: Recover Running.		Operator
【Stop】	Stop.
【Zero】	Manual Zero [No Power-down Protection].	Flashing green.
【Target】	Save the current real-time weight display value as the target weight.	[Auto]: ‘Auto Get Target Weight’is allowed. [N]: Counter of continuous qualified products.
【Print】	Report Print: [ Auto Print]: Print Batch Records. [Total]: Print Totalizing Report. [Recipe]: Print Present Working Recipe.
【Lock】	Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901].	Flashing Red: Locked. Grey: Unlocked.
【User】	User Login.
【Menu】	Enter Main Menu.		Technician
【Alarm】	Alarm Query / Clear Alarm.	Red: Alarm state.
【Clear】	Clear Screen: Clear the display values of Checking Weight, Batch Count and Totalized Weight.
【Sort】	‘Sorting Area Quantity’ [3-18] Selection. Only used for Weight Sorting Mode.		Engineer
【Curve】	Open/close the sub-window ‘Deviation Curve’. Only used for Rejecting Mode.		Engineer

Outline Size:

Product	Outline Size W×H×D[mm]	Front Panel Size W×H[mm]	Box Body Size W1×H1[mm]	Panel Cut-out Size W2×H2[mm]
7”[Big]	226.5×163.5×54	226.5×163.5	213×150	215×152
7”[Small]	203×149×54	203×149	190×136	192×138
10.2”	274×193×58	274×193	259×178	261×180

Package: 1pcs per box

Dynamic Checkweigher Controller For Production Line System

Product Tags:

Dynamic Checkweigher Controller

Checkweigher Controller For Production Line

Checkweigher Controller

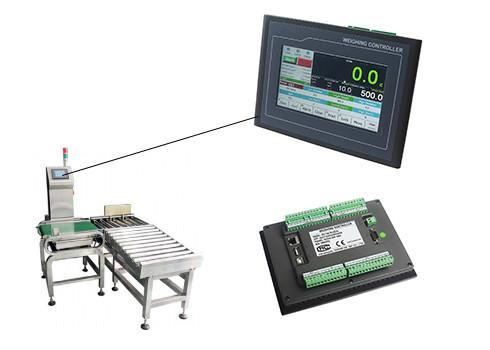

Dynamic Checkweigher Controller For Production Line System Images
